Sequence processing

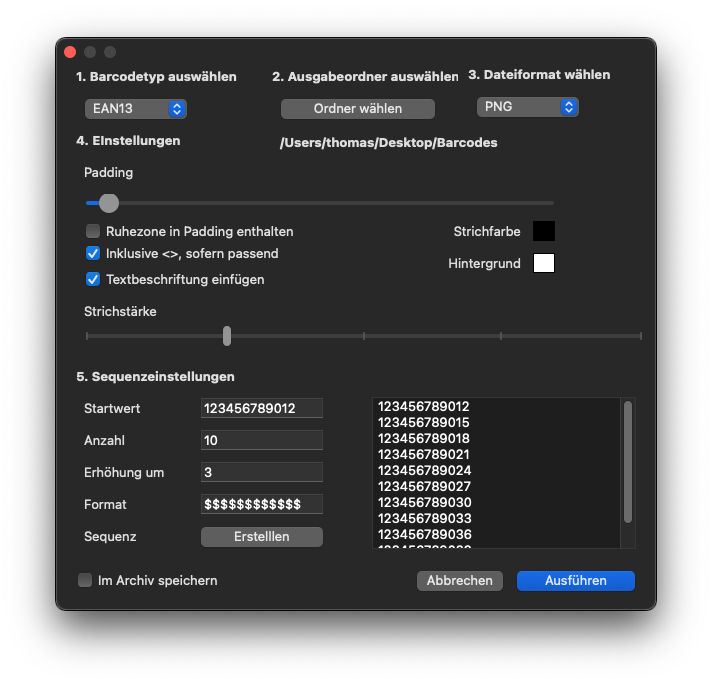

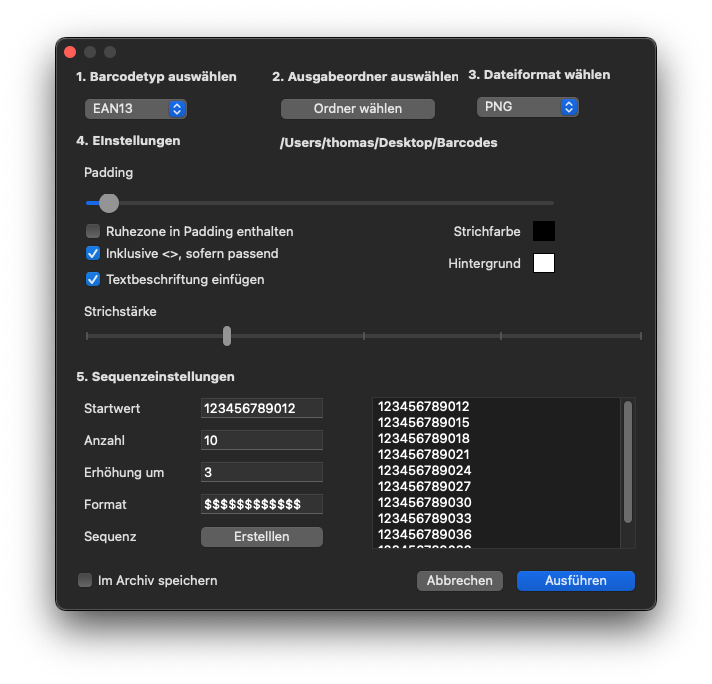

In the sequenez processing window, they are gradually led by the generation of barcodes or based on a self -controlled Seuqenz. Please open the sequence processing window with CMD-5 or by calling the menu file> sequence.


Then step by step:

  1. Select barcode type Select what type of barcode should be created by selecting the right entry from the list. The settings are shown to you.
  2. Select output folder, please determine where the barcodes generated should be secured. This can be an existing or a newly created folder.
  3. Select file format, determine which format the barcodes should be saved. The four supported formats SVG, JPG, PDF and PNG are available to choose from.
  4. Settings please set the settings for the barcode or QR code. You can find explanations on the setting options in the description of the main window.
  5. Squerus settings Please enter the desired information in the fields Start value, Number, increment and Format (or leave the default values). By clicking on the key Create the list of the list of Barcodes created in the preview text field.

Finally, you can still determine whether the newly created barcodes should be saved in the archive.

The execution then creates the barcodes.
